Scope of Supply and Physical Form

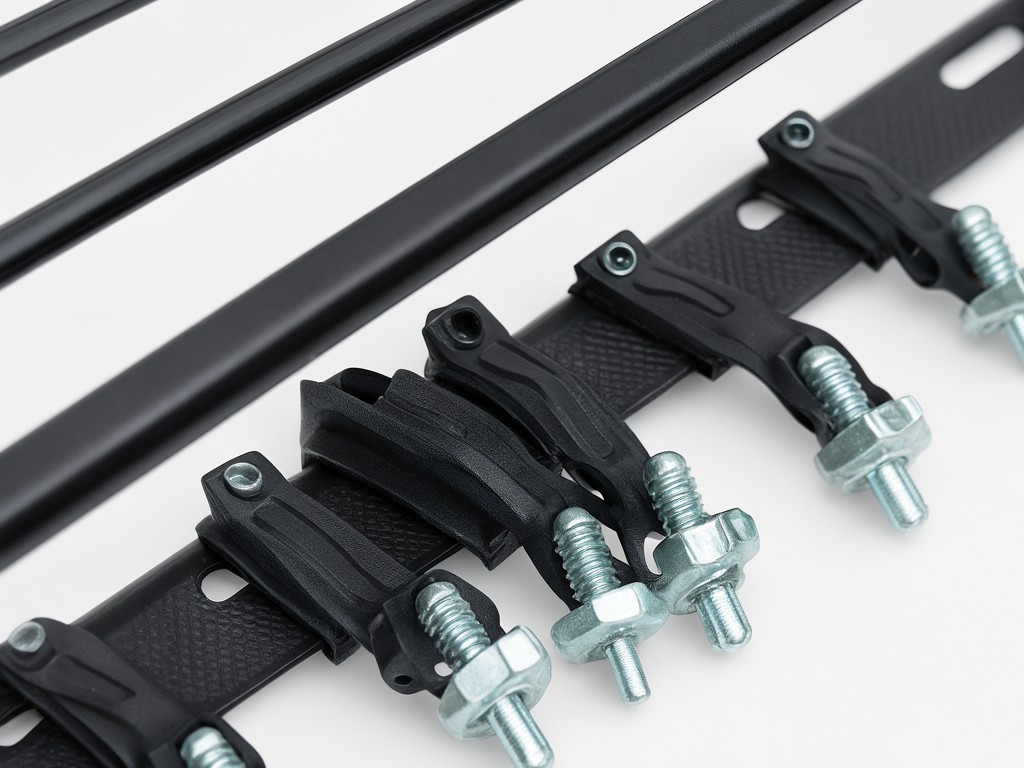

Material choice starts with the conditions the clamp will meet: crossbar shape, basket rail dimensions, weather exposure and the frequency of removal. A typical supply set includes formed U bolts, a stamped saddle or backing plate, washers and nuts. The clamp secures the basket to a compatible crossbar; it does not set the load capacity of the rack or vehicle.

For a second-source order, provide a sample or drawing with the basket rail and crossbar dimensions. M6 and M8 threads are common starting points, not interchangeable fit standards. The complete rack maker’s installation instructions and load limits remain controlling.

Comparing Two Standard Configurations

Construction options diverge as soon as purchase price, corrosion exposure and repeated removal are weighed together. Use this selection path to narrow the specification before requesting a production sample.

1. If the vehicle sees frequent rain, road spray or coastal exposure, compare stainless steel hardware first.
   1. Choose stainless where corrosion resistance and repeated service matter more than the lowest unit cost; confirm the grade and the mating hardware as a set.
   2. Check the saddle contact area and nut access against the basket rail before approving the sample.
2. If the target is a price-led replacement kit for ordinary road use, compare zinc-plated carbon steel.
   1. This option typically lowers the hardware cost, but damaged or worn plating can expose the steel to rust.
   2. Specify the finish and packaging method so loose parts do not abrade each other in transit.
3. For either route, verify clamp geometry against the actual rack interface. Do not use material choice to compensate for a poor fit.

Buying Mistakes That Lead to Returns

Returns often start with a fit assumption: a clamp described as “universal” arrives with legs too short for the basket rail, or a U-bolt radius that does not sit around the crossbar. The nuts may tighten, but uneven contact can leave the assembly prone to movement. Treat vehicle and rack compatibility as a dimensional check, not a product-name match.

Finish complaints follow a different pattern. A low-cost plated clamp can show rust after the coating is scratched during installation or after loose components rub together in a bulk carton. Stainless hardware reduces that exposure risk, but it does not correct incorrect thread engagement, poor fit or over-tightening. Ask for confirmation of the supplied material and finish on the production sample and purchase documents.

A missing washer, mismatched nut or incomplete kit can also make an otherwise usable clamp unsellable. Define the kit count per basket and the bag or carton quantity on the order sheet. Avoid publishing a clamp load figure unless it comes from the complete rack-system specification and a substantiated product basis.

Working as a Production Partner, Not a Catalogue Supplier

For wholesale buyers, importers and product managers qualifying a second source, the useful starting point is an approved interface—not a catalogue description. Share the current clamp sample or controlled drawing, target material and finish, kit contents, annual forecast and destination-market packing needs. Those details let the supplier assess the wire-forming, threading and stamped-plate requirements before quoting.

• Keep the approved sample, dimensional drawing and revision level tied to the purchase order.
• Separate any change to material, finish, nut type or pack count from a like-for-like second-source approval.
• Agree carton quantity, component bagging and batch identification before the first shipment.

A change in wire diameter, bend radius or thread length may affect fit and assembly even when the overall clamp looks similar. For a cost review, compare quotations against the same drawing revision and kit definition; otherwise, a lower unit price may reflect a different part.

Care, Storage and Service Life

Road grit, trapped moisture and repeated adjustment can wear a finish or mask early corrosion. Users should check the clamp and mating hardware during routine rack inspections, clean off dirt and salt residue, and replace parts that show cracked coating, rust at the threads, bent legs or damaged nuts. Reuse should follow the rack maker’s instructions; do not infer a re-torque value from the clamp alone.

Project Discussion

To qualify a second source, send the basket and crossbar measurements, preferred material and finish, current kit contents, forecast quantity and target delivery window. Discuss your roof rack basket U-bolt clamp project to align the sample, drawing revision and bulk-order scope before quotation.
